 | vertical electrophoresis apparatus |
| vertical electrophoresis apparatus |

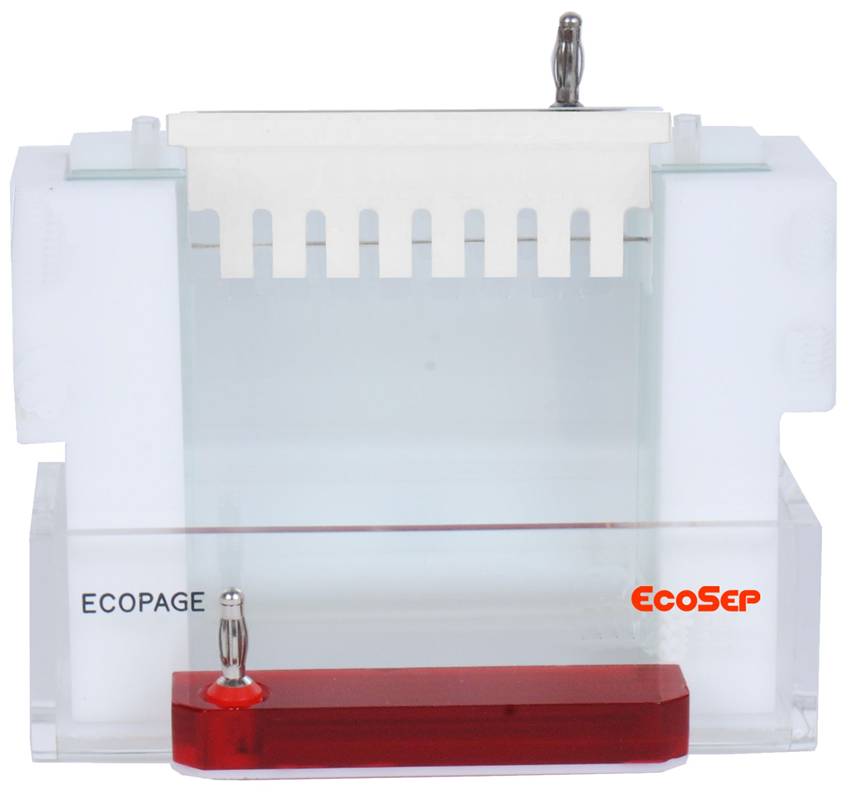

ECOPAGE | ECOPAGE |
With in situ casting | With casting stand |
Cat. No. E0200142 | Cat. No. E0200144 |
|
Gel size: 7.5 (w) x 8.5 (l) cm In-situ gel casting - Gel thickness: 1.5 mm Uni-directional migration No. of wells: 8 Buffer requirement: 100 mL 10% SDS-PAGE run in 70 min |
Gel size: 7.5 (w) x 8.5 (l) cm In-situ gel casting Casting stand Gel thickness: 1.5 mm Uni-directional migration No. of wells: 8 Buffer requirement: 100 mL 10% SDS-PAGE run in 70 min |
Ready-to-use system includes: | ||
| Components | Cat. No. E0200142 | Cat. No. E0200144 |
| 1. Lower anodic tank with electrodes and male connector | YES | YES |
| 2. Cathodic electrode unit fitted with male connector and electrode |
YES | YES |
| 3. Resilient silicone gasket for cathodic electrode unit | YES | YES |
| 4. Two notched and two rectangular glass plates | YES | YES |
| 5. Four 1.5 mm thick, PMMA spacers | YES | YES |
| 6. Two PMMA combs (1.5 mm thick, 8 wells, est vol 75 µL/well) |
YES | YES |
| 7. Set of clamps with screws | YES | YES |
| 8. Electrical cords with male & female connectors designed for user safety (1 pair) |
YES | YES |
| 9. Casting stand consisting of back plate and front plate | - | YES |
| 10. Gasket for casting stand | - | YES |
| 11. Instruction manual | YES | YES |
Ecopage
